Aetiology



Post-traumatic (type III clavicle fractures)

Idiopathic



4 patterns

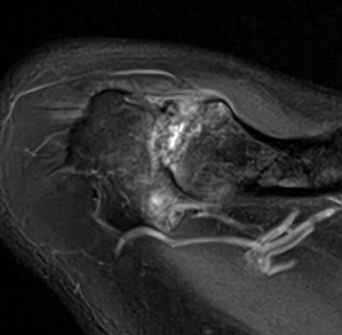

1. OA with osteophytes

-  contribute to impingement

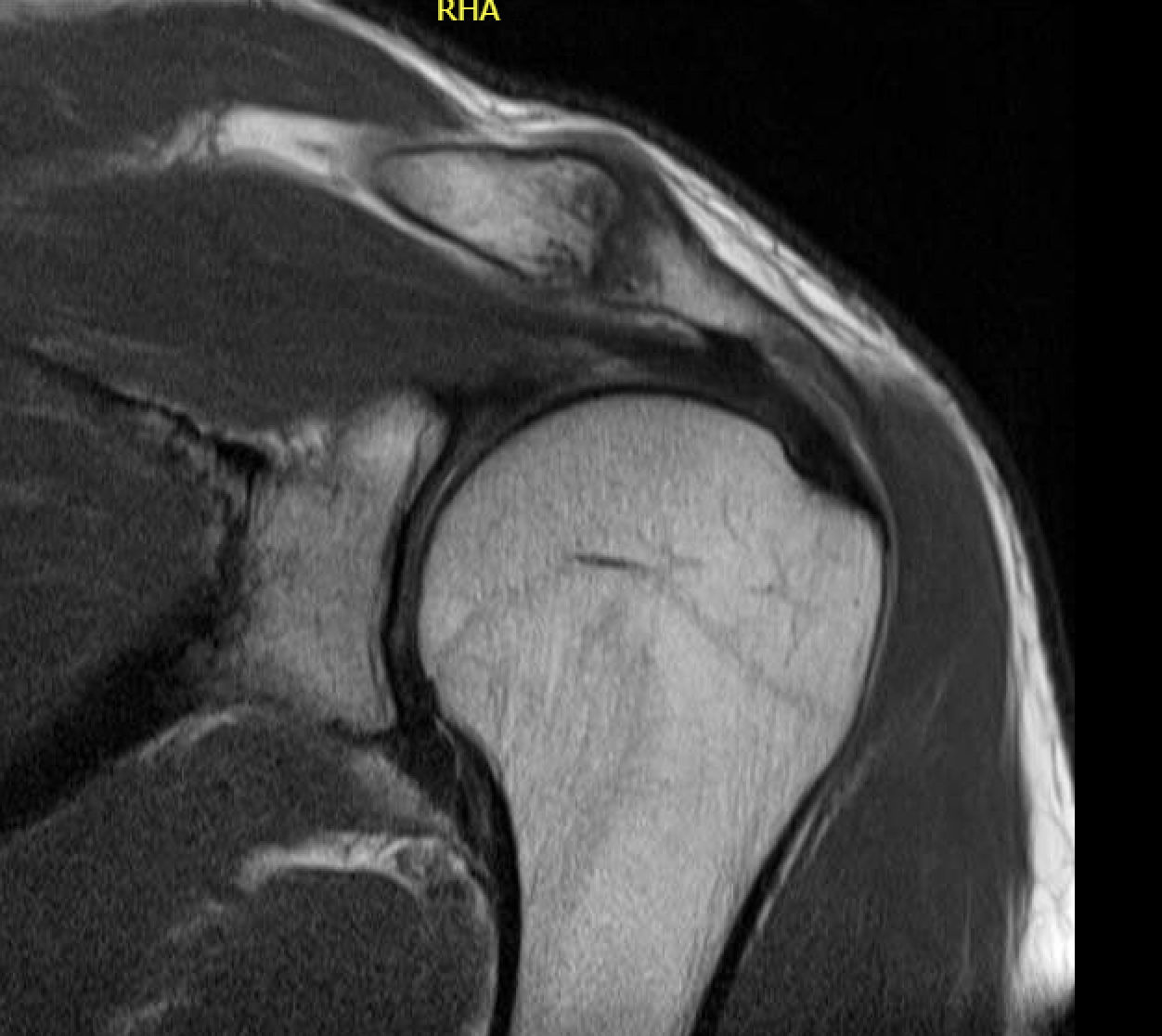

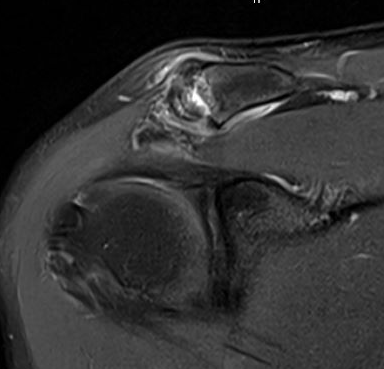

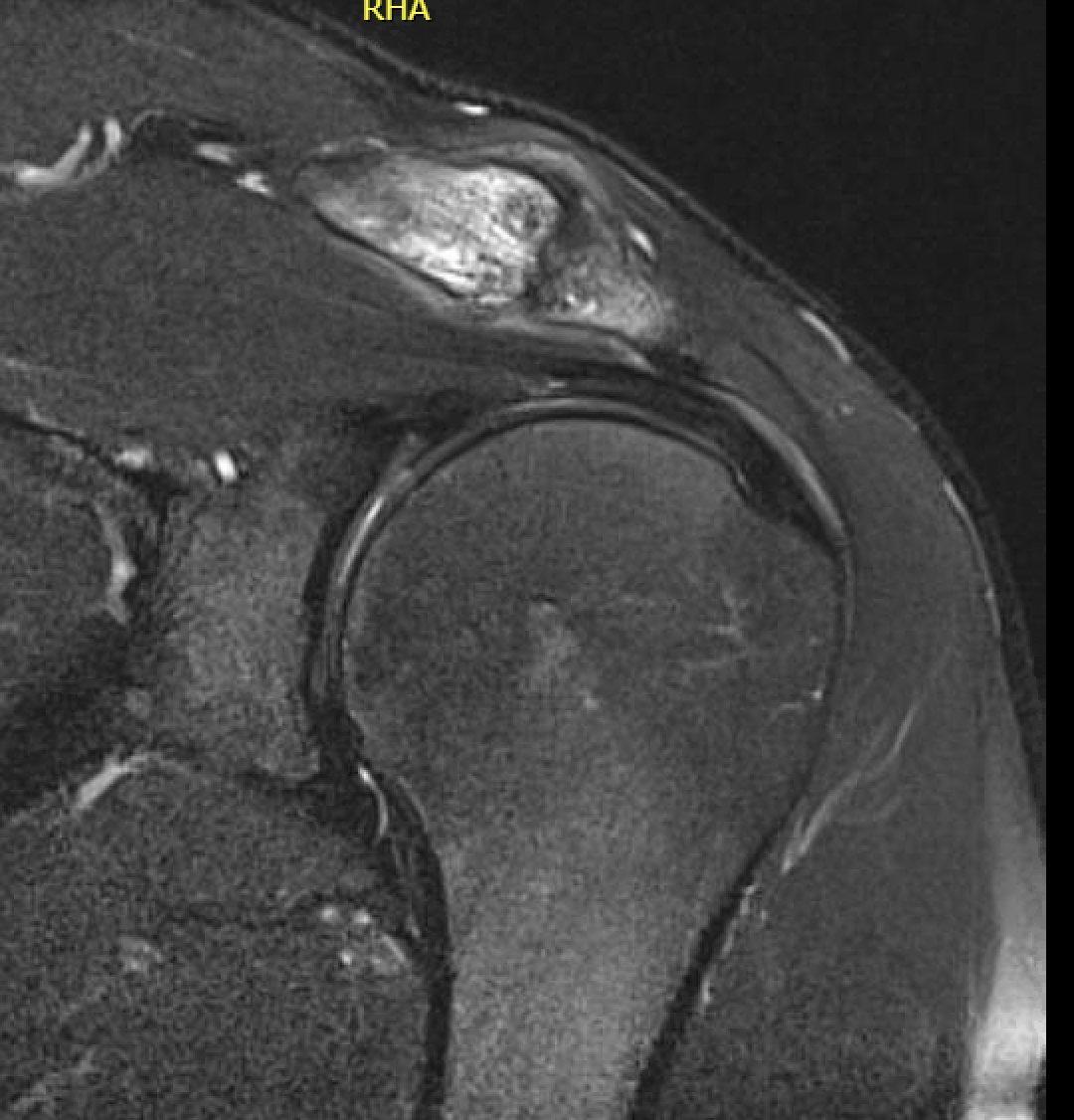

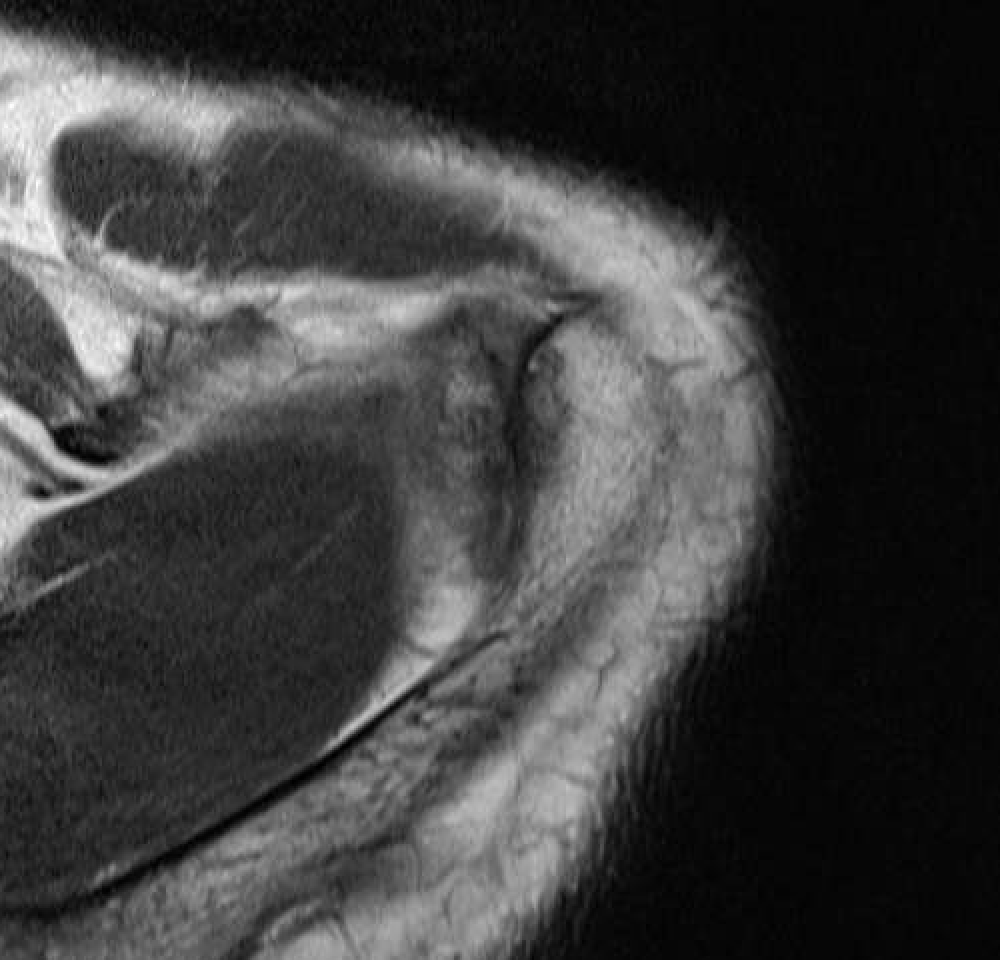

2. Osteolysis with resorption & gross osteoporosis

- due to repetitive microtrauma (eg weight lifters)





3. RA



4. Hyperparathyroidism



Symptoms



Anterosuperior shoulder pain

- difficulty sleeping on affected side

- pain radiates to trapezius / spasm



Signs





Tenderness to direct palpation is most reliable sign

- may feel osteophytes

- must compare to ensure other side is not tender (but may have bilateral ACJ OA)



Cross body adduction of arm

- tends to overlap with impingement



Diagnosis



LA + Cortisone

- inject into joint

- diagnostic / therapeutic



DDx



Intrinsic

- Impingement

- Calcific tendonitis

- ACJ gout

- ACJ sepsis



Extrinsic

- Cervical root C4/5

- shoulder tip pain from abdominal pathology



Xray



Zanca view

- AP 10° cephalic tilt with 50% penetration





Bone Scan



Not usually necessary





Management



Non-operative



Most patients respond well

NSAIDs

Activity modification

Steroid injection



Operative



Indications for surgery

- X-ray evidence of degenerative change

- tenderness at ACJ

- pain relieved by LA injection to ACJ

- failure of non operative treatment



Aim



Resect sufficient distal clavicle to prevent abutment



Options



1.  Open excision distal clavicle

2.  Arthroscopic resection



Open Excision of distal clavicle





Technique

- incision centered over the ACJ

- minimal takedown of deltopectoral fascia and anterior deltoid

- incise ACJ capsule longitudinally in midline

- elevate subperiosteally and repair later for stability

- resect 1cm only so as to not destabilise clavicle

- must leave conoid / trapezoid ligaments intact



90% success rate



Arthroscopic ACJ Resection



Advantage

- minimal incisions

- preserves superior AC ligament and deltoid

- quicker rehabilitation



Results



Freedman et al J Should Elbow Surg 2007

- routine GH scope initially

- identified subtle intra-articular changes not seen on MRI  which were treated

- labral tears, partial RC tears

- resection performed via subacromial space

- very similar results at 1 year to open resection



Technique



1.  Identify distal clavivle

- remove bursa and perform SAD

- use electrocautery from lateral portal to identify the distal clavicle (push down on clavicle repetitively)

- clean and identify clavicle anterior and posterior





2.  Anterior portal

- placed just at lateral aspect of distal acromion

- remove anterior then posterior clavicle

- must remove full thickness of distal clavicle superiorly / be able to visualise superior AC ligament

- must not leave posterior edge
