Ankle Fracture

Ossification



Distal tibia

- appears by 2 years

- closed at maturity

- asymmetrical closure

- central initially, then posteromedial to anterolateral

- accounts for Tillaux and Triplanar fractures



Distal fibula

- appears by 2 years

- closes 2 years after distal tibia



Medial Malleolar Extension

- begins age 7

- closes age 10



Types of Fractures



SH I

SH II

SH III - medial malleolus / Tillaux

SH IV

Triplanar

SH V



Salter Harris I



SH 1 Distal FibulaPaediatric Distal Tibia Salter Harris 2



Incidence



15% of distal tibial physeal fractures

Distal fibular most common



Mechanism



Through zone hypertrophy



Management



Operative if require realignment



Salter Harris II



SH2 distal tibia 1SH2 distal tibia 2



Epidemiology



40% of distal tibial physeal fractures



Pathology



Thurston-Holland fragment

- large metaphyseal component



Non operative Management



Acceptable distal tibial alignment

Short leg case 6 weeks



Operative Management



SH2 distal tibia 3SH2 distal tibia 4



Unacceptable alignment



Attempt closed reduction

- sometimes anterior periosteum can block reduction

- anterior approach / remove periosteum / reduce fracture



Unstable reduction

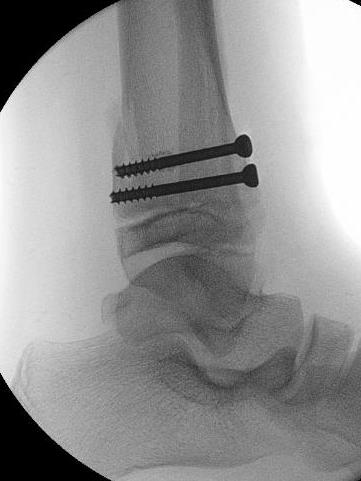

- screws into Thurston Holland fracture if large enough

- if fragment too small need fixation across medial malleolus into metaphysis



Late presentation 7-10 days

- may be best left

- prevent damage physis

- later osteotomy if needed



Complications



LLD

- complete growth arrest



Angular deformity

- partial growth arrest

- uneven Harris growth lines

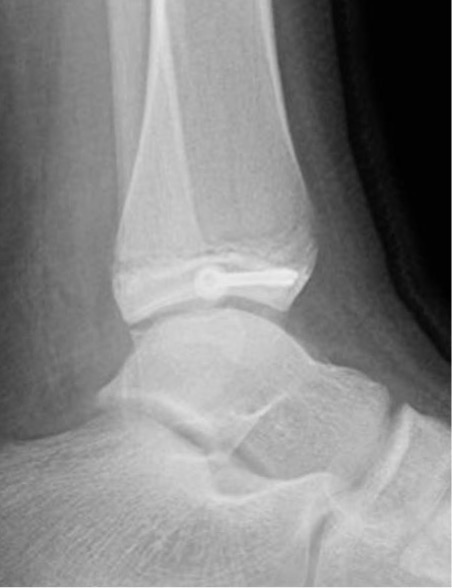

Salter Harris III / Medial Malleolus





Issues



2 problems

- articular disruption

- possible physeal bar



Management



ORIF any > 2mm step

- physeal cannulated screws



Complications



Joint incongruity

Growth arrest



Salter Harris III / Tillaux



Tillaux Fracture CT Coronal Tillaux Fracture CT Sagittal



Definition

- SHIII of anterolateral distal tibia

- epiphyseal avulsion of AITFL

- supination / ER injury



Incidence

- usually near skeletal maturity

- transitional fracture

- as distal tibial physis is closing

- anterolateral fragment is last to close



Tillaux Fracture ORIF



Management



ORIF

- reduce articular step / prevent physeal bar

- anterolateral incision to reduce

- either anterolateral 4 mm cannulated screw or

- place screw percutaneously from medial side



Salter Harris IV





Incidence

- 25%

- usually associated with triplanar



Complications

- bony bar

- articular step



Management



ORIF > 2 mm step

- restore articular surface

- reduce risk of bar

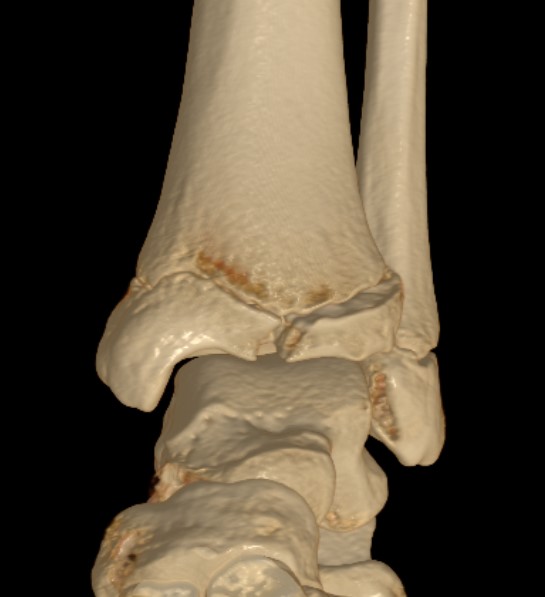

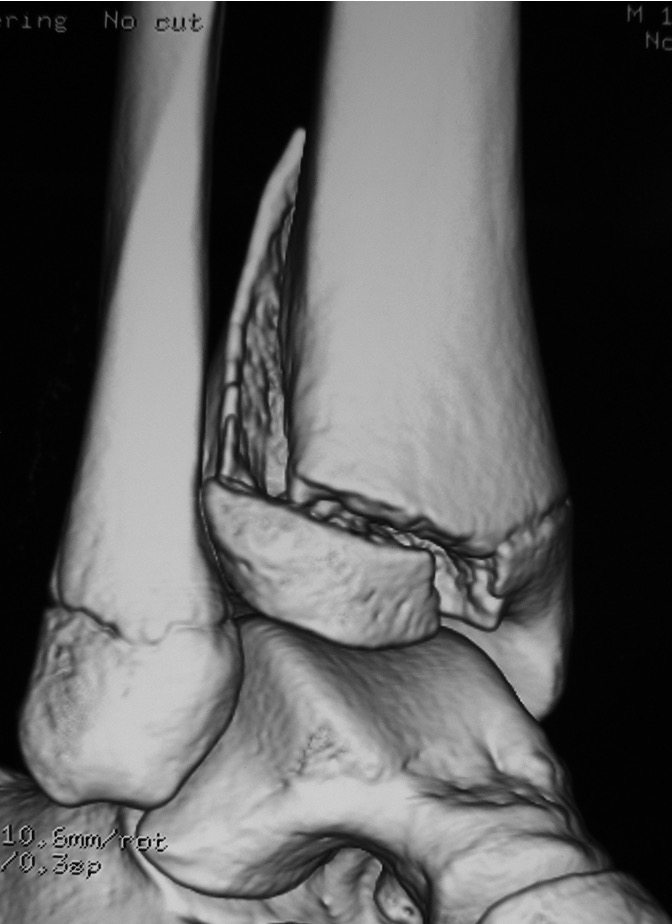

Triplanar Fracture



Triplanar AP



Definition

- fracture in coronal, sagittal and transverse planes

- 2, 3 or 4 part



Varieties

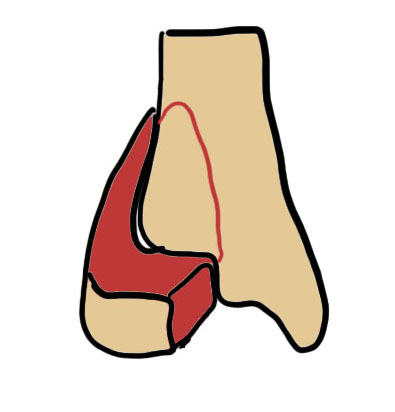

2 part

- can be medial or lateral based of site of main distal fragment

- typically anterolateral epiphysis attached to posterior metaphysis

- anteromedial intact distal tibia



3 part

- additional separate anterolateral epiphysis / Tillaux



4 part

- additional separate metaphyseal fragment



Extra-articular

- fracture extends into medial malleolus



Xray



Type III / Tillaux on AP

Type II on lateral



CT



Type III on coronal

Type II on sagittal

3 point star on axial



Management

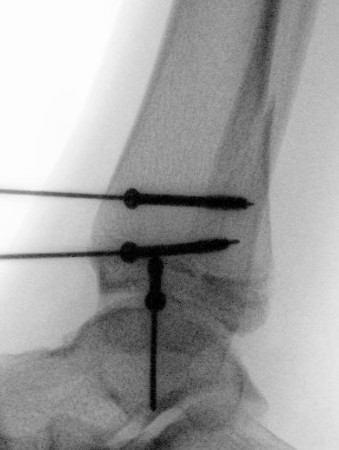

ORIF

- > 2mm displacement

- usually anterolateral approach to reduce

- epiphyseal medial-lateral screw

- metaphyseal AP screw



Complications



Growth arrest 10%



Salter Harris V



Usually late diagnosis

Growth arrest / LLD
