Tibial Tubercle Fractures

Epidemiology



Adolescent boys



Ossification



Proximal tibia / primary ossification centre



Tibial tuberosity / secondary ossification centre

- eventually merges with primary ossification centre



Ogden Classification

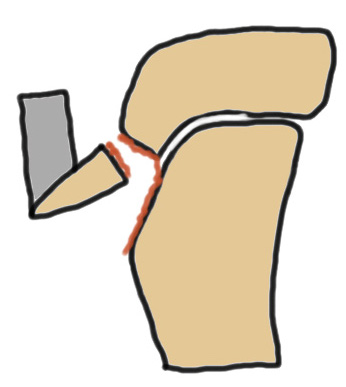

Type I - Tibial tuberosity ossification only



Tibial Tubercle Avulsion Type 1

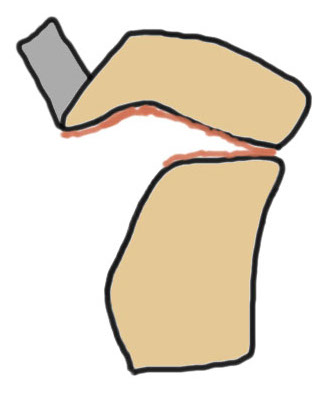

Type II - Extends into proximal tibial ossification centre / non articular

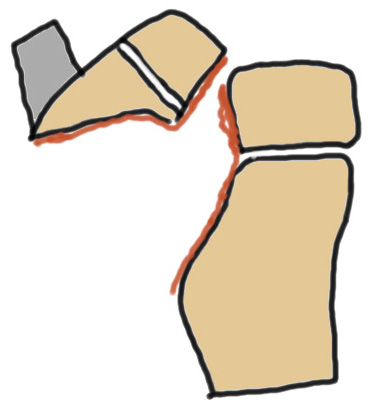

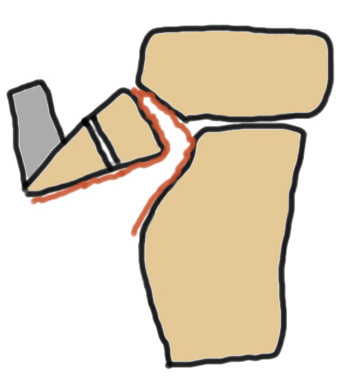

Type II - Extends into articular surface of proximal tibial ossification centre



Management



Beware



Compartment syndrome



Popliteal artery injury



Associated extensor mechanism disruption

- suggest ultrasound



Undisplaced



Cast in extension for 6 - 8 weeks



MUA



Indicated in type I and II +/- type III



Extend knee

- often require sedation + analgesia

- assess reduction in cast



Operative



Indications

- type I & II displaced > 5 mm

- residual recurvatum

- type III / intra-articular extension



Technique

- open reduction + AP cancellous screws through tibial tuberosity



Results



Mosier et al J Paediatr Orthop 2004

- 19 fractures

- majority from athletics / mainly basketball

- 4 reduced and immobilised, remainder required ORIF

- 3 patients had associated extensor mechanism disruption

- 2 patella tendon avulsions and 1 quadriceps tendon



Complications



Compartment syndrome

Recurvatum
