Avascular Necrosis

Diagnosis



Xray

- sclerosis



Scaphoid Fracture Proximal Pole AVNScaphoid Proximal Pole ORIF AVN



CT



Scaphoid AVN CT



MRI

- probably the most sensitive and specific



Bone Graft v Vascularised bone graft



Merrell J Hand Surg Am 2002

- meta-analysis



1.  Bone graft with proximal pole AVN

- union 50%



2.  Vascularised bone graft with proximal pole AVN

- union 88%



Vascularised bone grafting / VBG



1.  Pronator quadratus pedicle graft

- much less common now



2.  Vascularised distal radius graft / Zaidemberg

- most common



3.  2nd metacarpal graft

- very common



Technique Zaidemberg



Dorso-radial approach

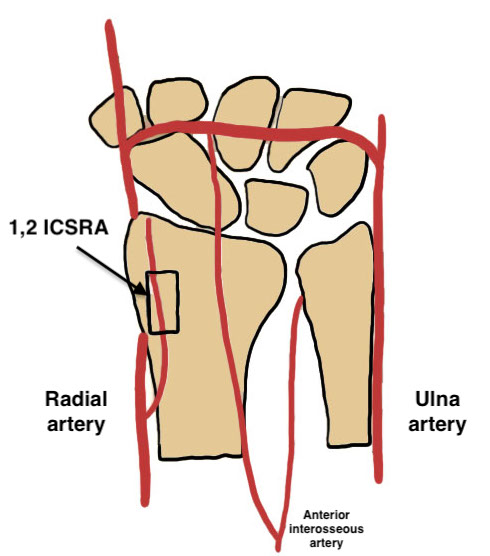

- 1/2 intercompartmental supraretinacular branch of the radial artery

- travels distal to proximal

- between tendons of the first and second extensor compartments

- can use 2/3 if 1/2 small or missing

- follow to distal radius

- osteotome 3 sides preserving pedicle



Dorsal approach to scaphoid

- open non union site

- insert VBG

- fixation with screw
