Background

Definition



Congenital Talipes Equinovarus



Congenital abnormality of the foot characterised by

- hindfoot equinus & varus

- forefoot Adduction

- midfoot Supination



Latin: talus - ankle / pes - foot / equinus - horse like



Clinical



Foot

- pipe stem calf

- short wide foot

- small heel

- curved lateral border

- short first ray ray



Short T Achilles



LLD



ER torsion tibia



Epidemiology



1:1000 live births

- 1/1000 Caucasian

- 5/1000 Polynesians

- 0.5/1000 Asian



Boys 2:1



Bilateral 30-50%



Genetics



Twin studies

- 33% risk in monozygotic twins

- 3% dizygotic twins

- i.e. is not just the placental environment



Sibling or parent

- 3% chance

- 30x increased risk



Sibling and parent

- 10 - 20% risk



Deletion on chromosome 2



Associations



Spina bifida & arthrogryposis (teratogenic)



Plus

- cerebral palsy

- muscular dystrophies

- spinal muscular atrophy



Theories of pathogenesis



1.  Fetal development arrest in fibular phase

- during first and second months leg and foot coplanar

- by beginning of third month foot is in 90o of equinus, has supinated & adducted with plane at right angles to leg

- by the middle of the 3rd month the equinus has corrected

- by the end of the third month the supination and adduction has corrected to the adult position

- Bohm postulated arrest in the first phase in week 5



2.  Retracting fibrosis (Ippolito and Ponseti)

- decrease in size & number of muscle fibres in posteromedial muscles

- ? fibrous tissue in muscles, tendon sheaths & surrounding fascia

- marked shortening and thickening of the tibionavicular and plantar calcaneonavicular ligaments



3.  Neurogenic theory

- minor innervation changes in posterior muscles

- subsequent fibrosis and shortening



4.  Myogenic theory

- myofibroblasts in medial fascia



5.  Vascular theory

- anterior tibial artery / dorsalis pedis frequently missing



Pathology



All tissues in foot abnormal

- bony / muscle / ST / vascular



Bony deformities



Talus

- primary deformity

- equinus

- medial deviation of head and neck of talus

- external rotation of body of talus in mortise

- narrow neck & hypoplastic head due to lack of development of articular cartilage on lateral surface of head



Os Calcis

- equinus

- medial rotation

- long axes of talus & os calcis are parallel in sagittal & transverse planes



Navicular

- subluxed medially against medial malleolus



Cuboid

- medial column subluxed medially and adducted

- lateral & medial columns conjoined therefore cuboid subluxed medially also



Metatarsals

- adductus but minor compared to talonavicular deformity



Soft Tissues



Plantar fascia & intrinsics contracted

- long & short plantar ligaments

- contracture plantar fascia

- creates cavus



Tendons short

- T Achilles, T Posterior, FHL and FDL short



Ligaments short

- deltoid

- spring

- calcaneofibular ligament

- posterior talofibular ligament

- bifurcate



Joint capsules contracted

- posterior ankle joint

- posterior subtalar joint

- talonavicular joint

- calcaneocuboid joint



Muscles atrophied



Classification



A.  Postural

- passive correction possible

- usually corrects spontaneously within days / weeks

- well defined heel, no calf atrophy

- relatively normal foot size

- no transverse medial skin crease



Mild - nearly fully correctable

Moderate - partially correctable

Severe - slightly correctable



B.  Rigid

- uncorrectable

- small bean shaped foot, transverse crease, tight skin, atrophic calf

- heel difficult to palpate due to overlying fibrofatty tissue



C.  Teratogenic talipes

- associated with spina bifida & arthrogryposis

- prognosis is much worse than idiopathic



Pirani Score



Pirani scoring system (0, 1/2, 1) (total out of 6)



Look (3)

- posterior crease / medial crease / lateral curvature



Feel (2)

- head of talus (anterior to lateral malleolus)

- empty heel



Move (1)

- DF range



Can be used to predict likelihood of needing TA tenotomy



Clinical Features



Look



Deformity / CAVES

Cavus - relative pronation of forefoot c.f. hindfoot

Adduction - forefoot

Varus - heel

Equinus - heel

Supination - midfoot



Posterior / medial crease

Curved lateral border of foot

Calf atrophy



Walk older child



Dynamic supination - require T anterior transfer

Metatarsus adductus

Foot progression angle - tibial torsion



ROM



DF

Eversion



Feel



Empty heel

Palpable talus - devils thumbprint anterior to lateral malleolus

Navicular fixed to medial malleolus

Os calcis fixed to the lateral malleolus



Exclude

- spinal dysraphism - look at spine

- arthrogryposis

- neuromuscular disorders



Rotational Profile

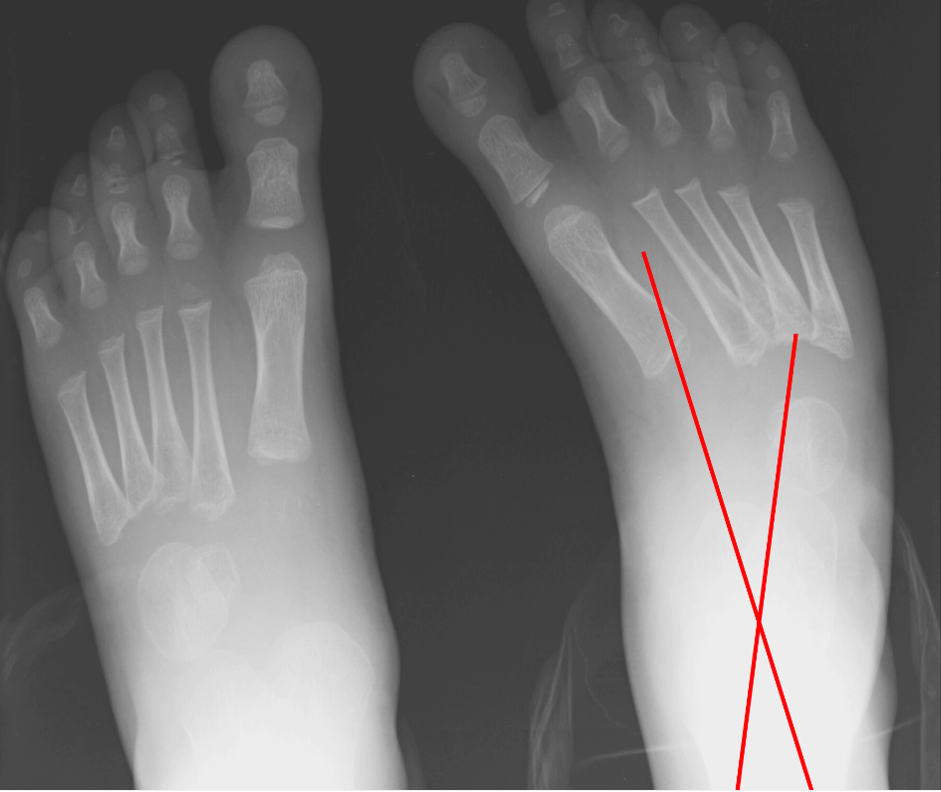

X-ray



Usually not indicated



Ossification

- calcaneal & talus ossification centres are present at birth

- cuboid appearing by 6 months

- navicular will not appear until 2-4 years



Angles



AP talocalcaneal angle / Kite's angle

- ankle DF 15° & tube at 30° from vertical

- long axis talus parallel long axis of calcaneum

- normal 20-40°

- <20° hind foot in varus / clubfoot axes approach parallel



Lateral talocalcaneal angle

- long axis of talus parallel to long axis of calcaneum

- normal 25-50°

- < 25° indicates hindfoot in equinus

- clubfoot axes are parallel or negative



Talo-1st metatarsal angle / AP

- long axis of talus to long axis of 1st metatarsal

- normal 5-15° abduction

- clubfoot 0° to negative
