Capitellar Fracture



Uncommon fracture which is difficult to diagnose if fracture fragment is small



Elbow Capitellar FractureCapitellar Fracture CT SagittalCapitellar Fracture CT Axial

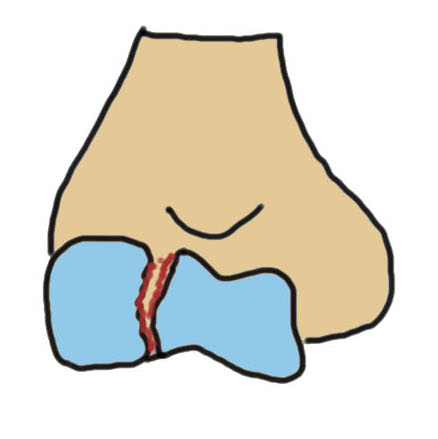

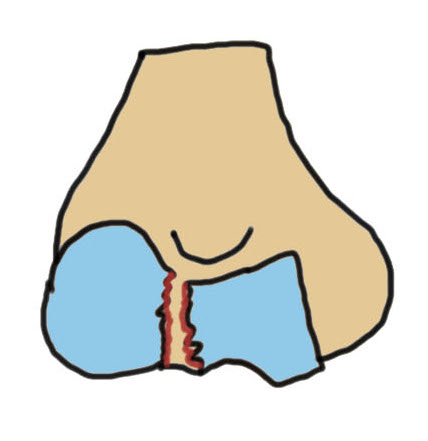

Type I

- Hans Steinthal fracture

- fracture of the capitellum in the coronal plane

- involves large part of the osseous portion of capitulum

- fracture hinges anteriorly between radial head and radial fossa producing a block to flexion



Management



If closed reduction is obtained, then reduction is usually stable with elbow flexion



Open reduction



A. Posterolateral / Kocher approach

- between aconeus and ECU



B. Lateral approach

- between EDC and ECRB

- may place PIN at increased risk



One or two headless compression screws

- front to back

- buried



Capitellar Fracture ORIF0001Capitellar Fracture ORIF0002

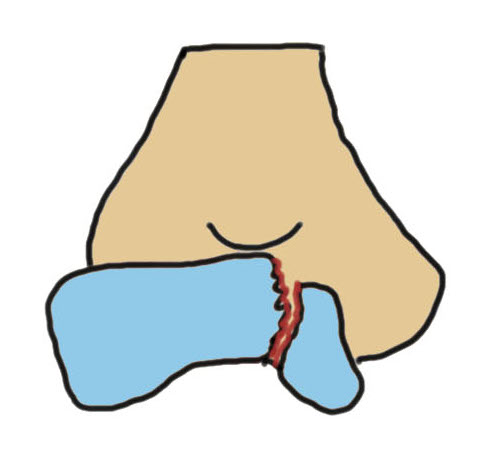

Type II

- Kocher Lorenz fracture

- affects primarily articular cartilage and very little underlying bone

- these usually cause few subsequent joint problems



Management

- healing potential is minimal & excision is recommended
